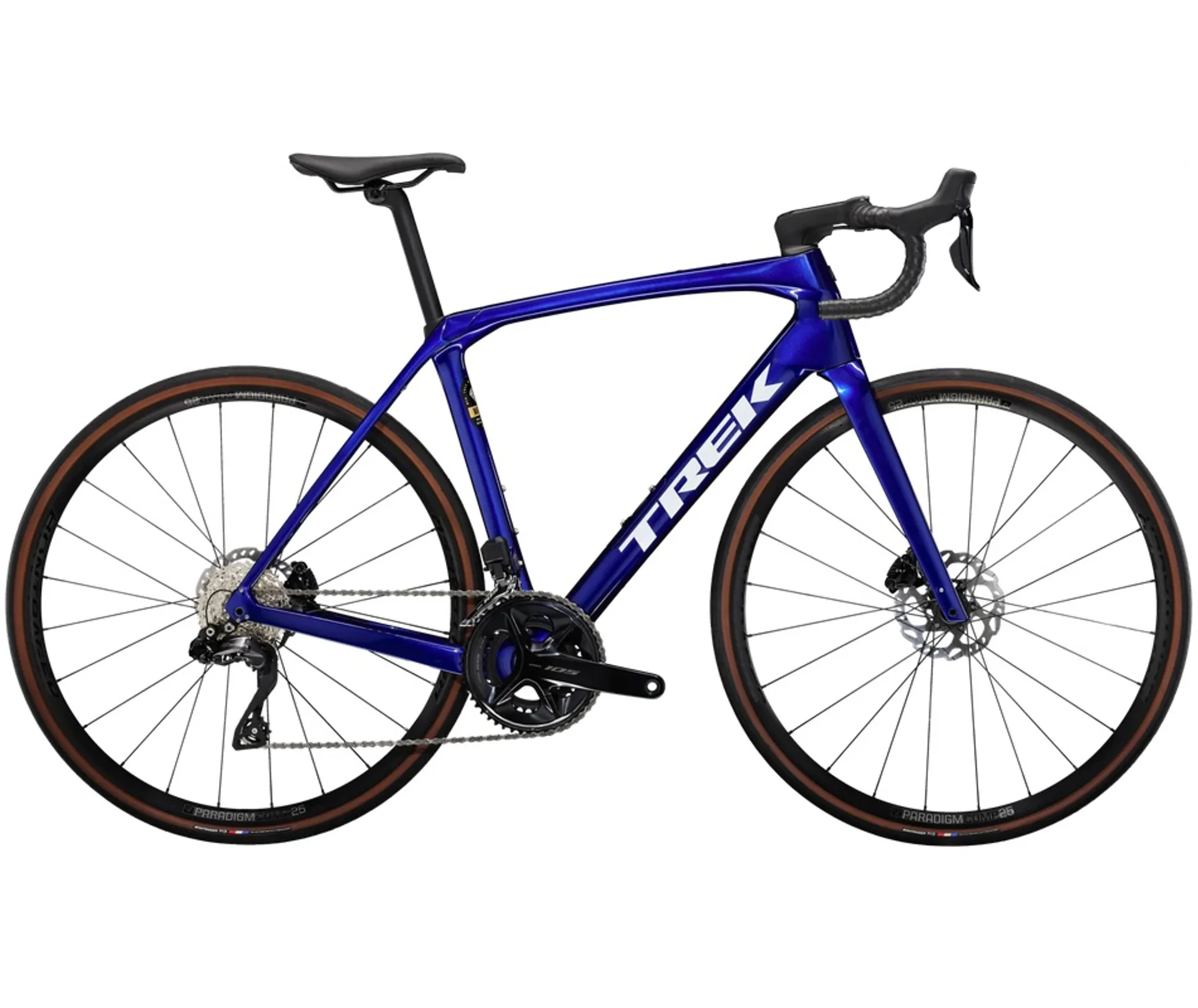

- Frame:

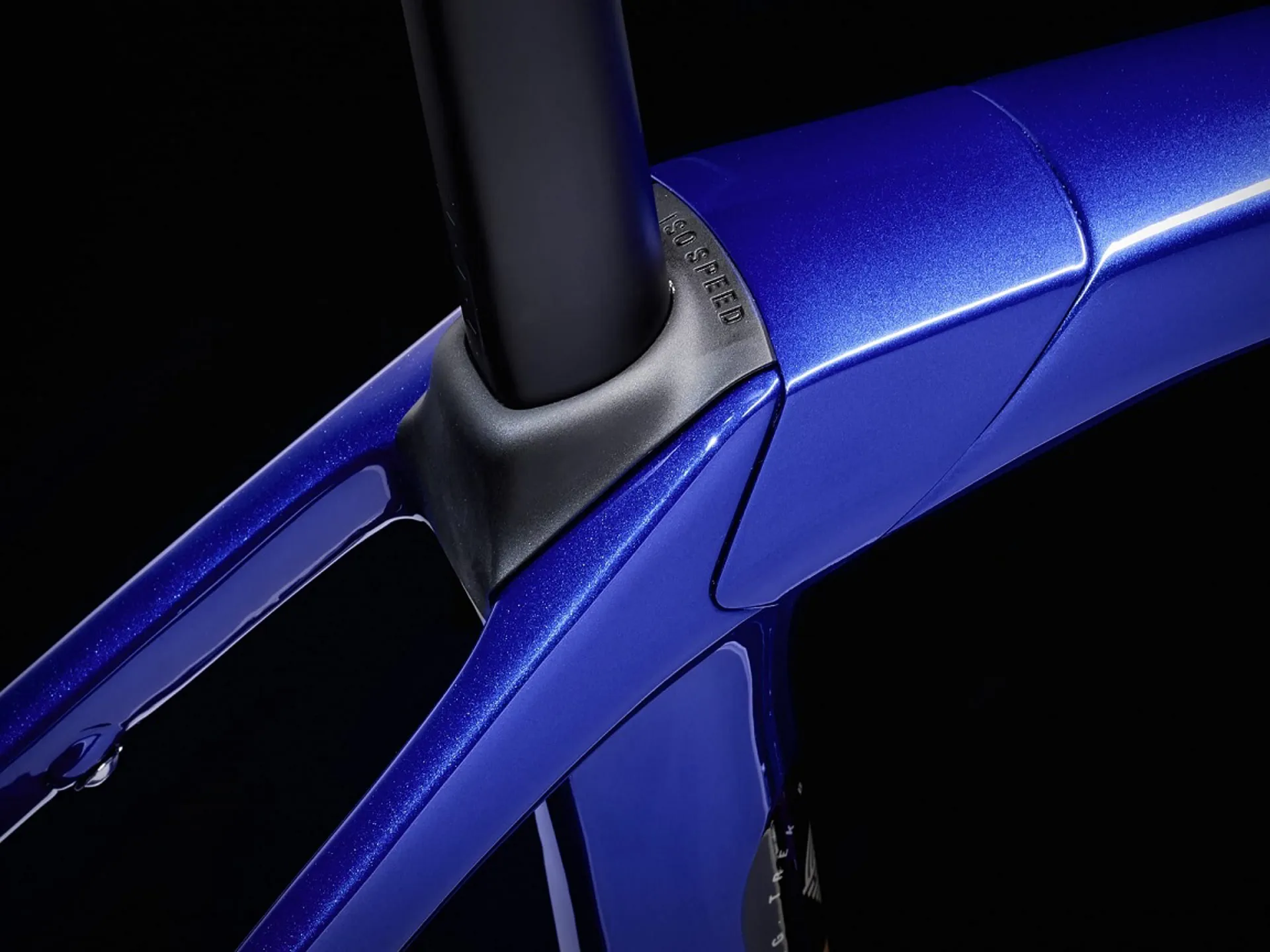

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
- Fork:
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- Frame fit:
Endurance
- Wheel front:
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
- Wheel rear:
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142x12 thru axle
- Skewer front:
Bontrager Switch thru axle, removable lever
- Skewer rear:
Bontrager Switch thru axle, removable lever
- Rim:
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width
- Tire:
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
- Tire part:
Bontrager TLR sealant, 6oz
- Rim strip:
Bontrager TLR
- Max tire size:
38c without fenders, 35c with fenders
- Shifter:
Shimano 105 R7170 Di2, 12 speed
- Front derailleur:
Shimano 105 R7150 Di2, braze-on, down swing
- Rear derailleur:
Shimano R7150 Di2, 36T max cog

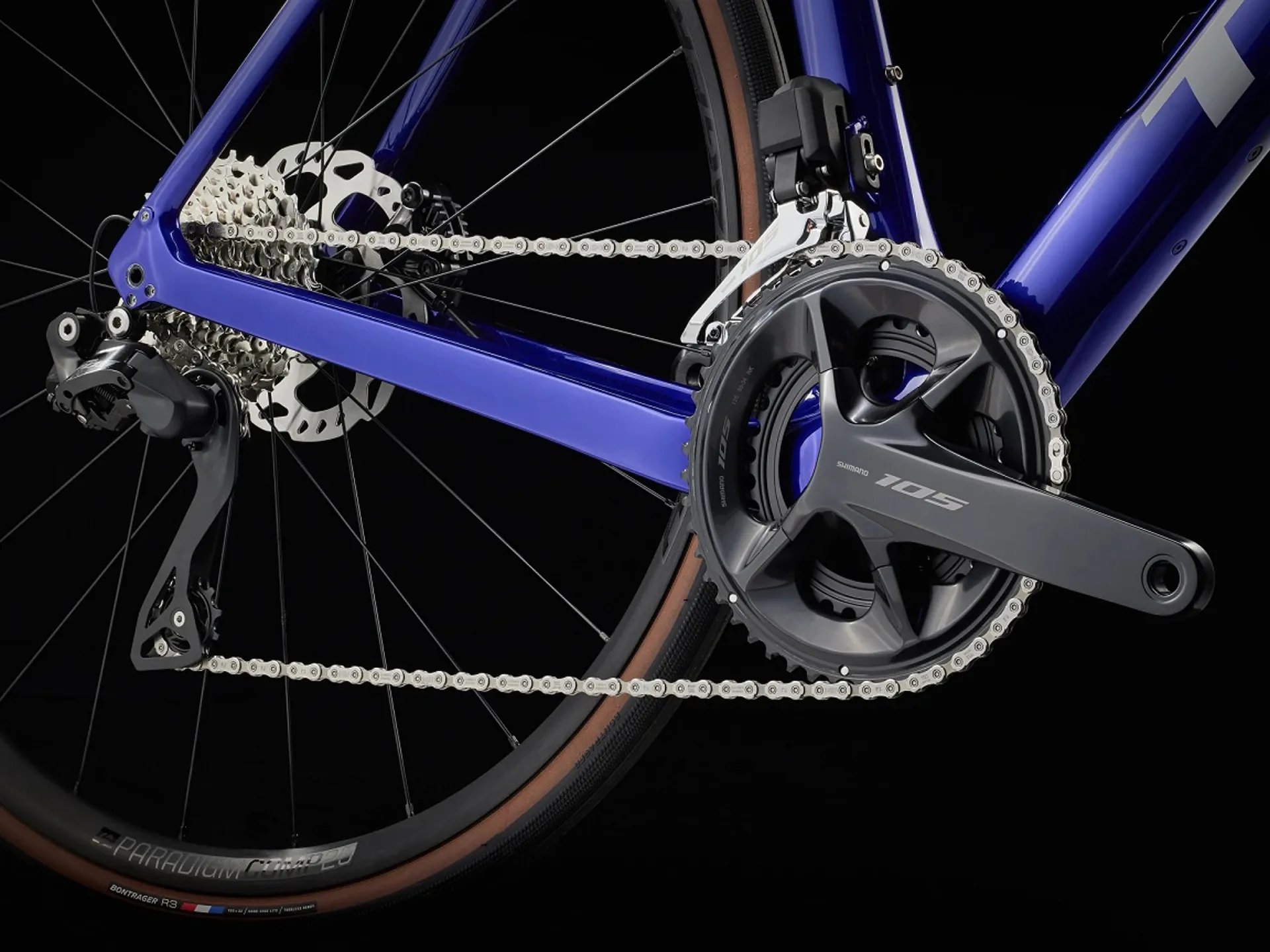

- *Crank:
Size: 47 Shimano 105 R7100, 50/34, 165mm length Size: 50, 52 Shimano 105 R7100, 50/34, 170mm length Size: 54, 56 Shimano 105 R7100, 50/34, 172.5mm length Size: 58, 60, 62 Shimano 105 R7100, 50/34, 175mm length
- Bottom bracket:
Praxis, T47 threaded, internal bearing
- Cassette:
Shimano 105 7100, 11-34, 12 speed
- Chain:
Shimano SLX M7100, 12 speed
- Max chainring size:
2x: 52/36
- *Saddle:
Size: 47, 50, 52 Bontrager Verse Short Comp, steel rails, 155mm width Size: 54, 56, 58, 60, 62 Bontrager Verse Short Comp, steel rails, 145mm width
- *Seatpost:
Size: 47, 50, 52, 54, 56 Domane carbon seatpost, KVF shaping, 20mm offset, 280mm length Size: 58, 60, 62 Domane carbon seatpost, KVF shaping, 20mm offset, 320mm length

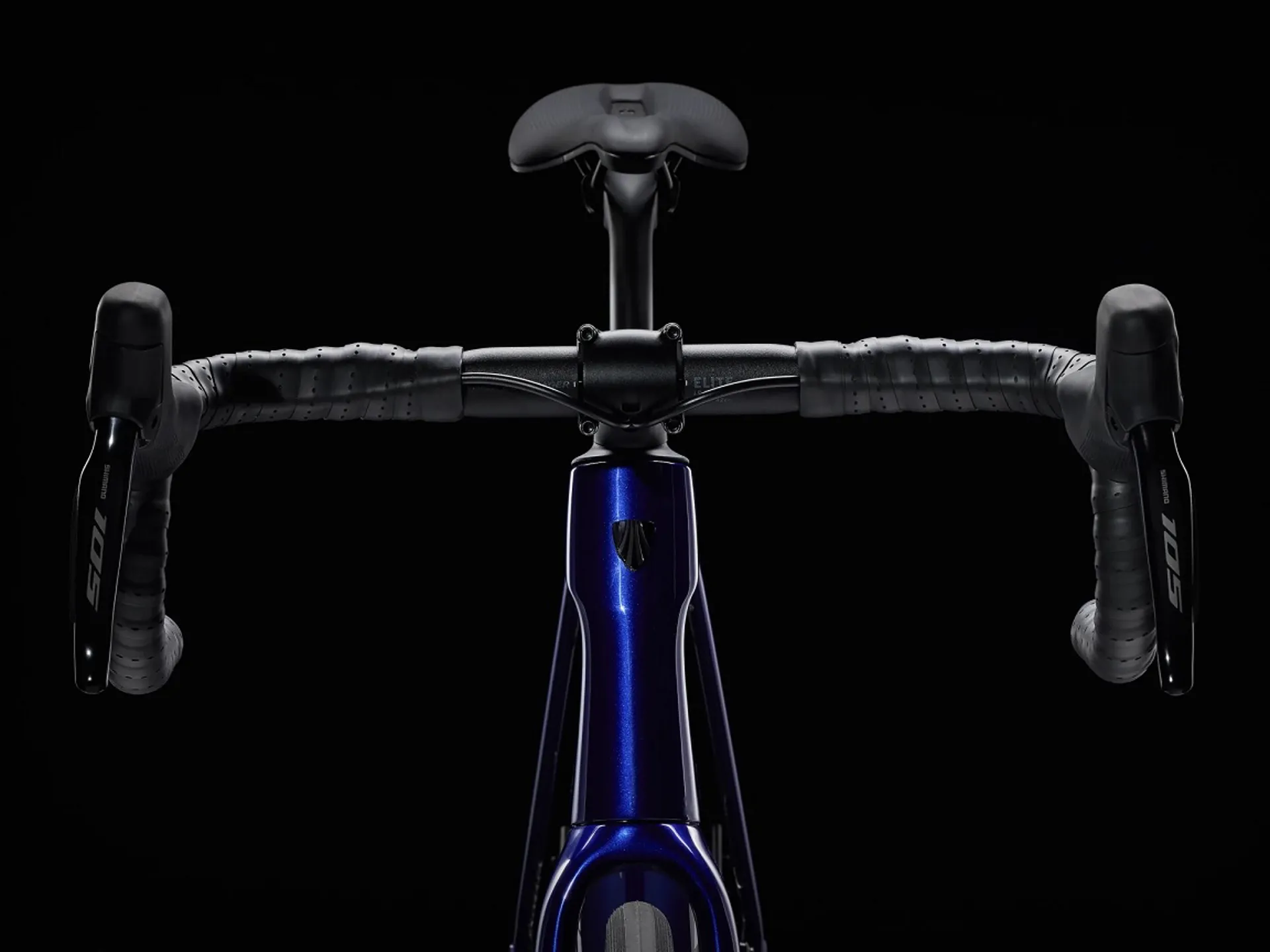

- *Handlebar:
Size: 47 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width Size: 50 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width Size: 58, 60, 62 Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
- Handlebar tape:
Bontrager Supertack Perf tape

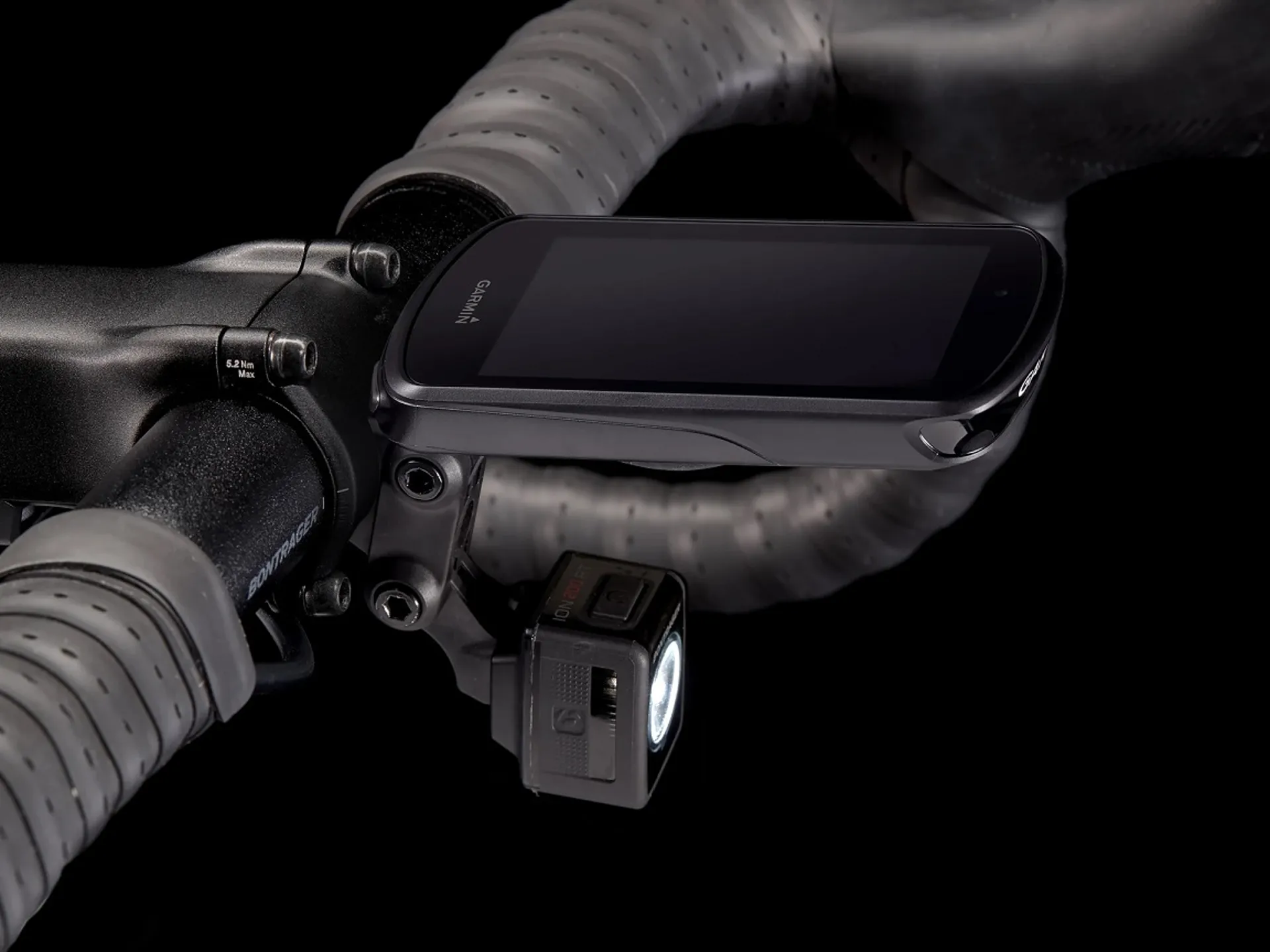

- *Stem:
Size: 47 Bontrager RCS Pro, -7 degree, 70mm length Size: 50 Bontrager RCS Pro, -7 degree, 80mm length Size: 52, 54 Bontrager RCS Pro, -7 degree, 90mm length Size: 56, 58 Bontrager RCS Pro, -7 degree, 100mm length Size: 60, 62 Bontrager RCS Pro, -7 degree, 110mm length

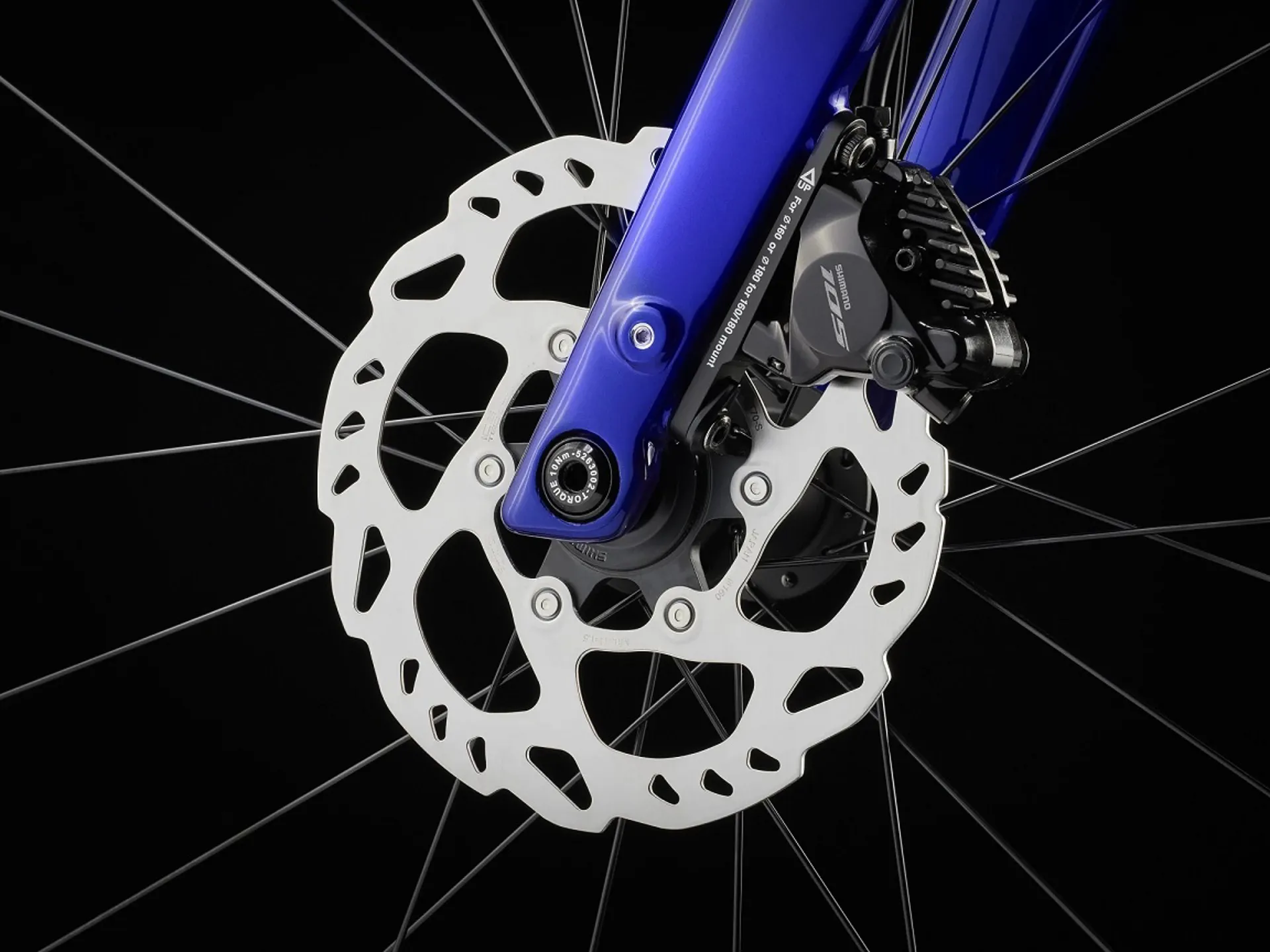

- Brake:
Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
- Brake rotor:
Shimano RT70, centerlock, 160mm
- Rotor size:
Max brake rotor sizes: 160mm front & rear
- Battery:
Shimano BT-DN300
- Charger:
Charging cable included

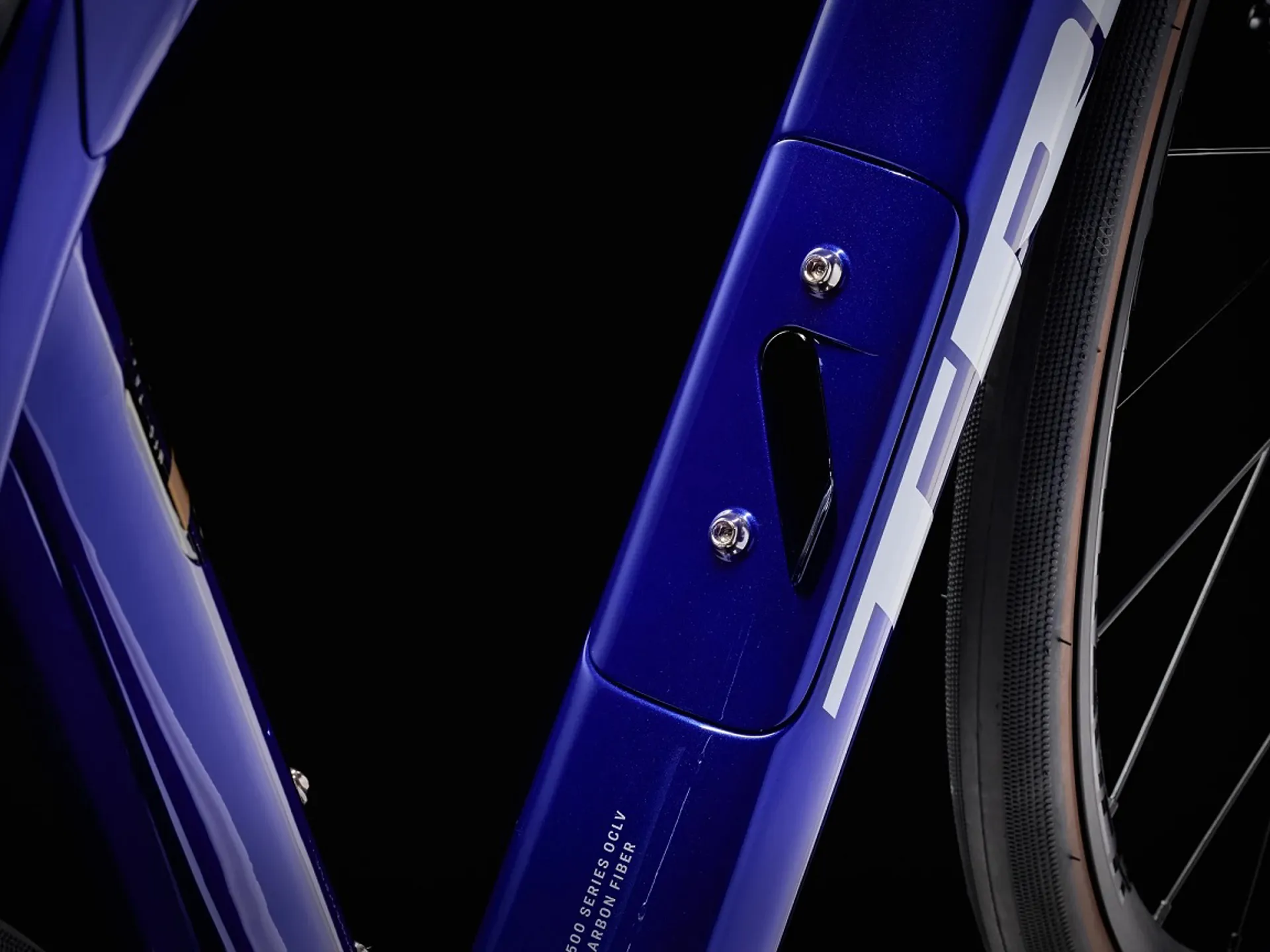

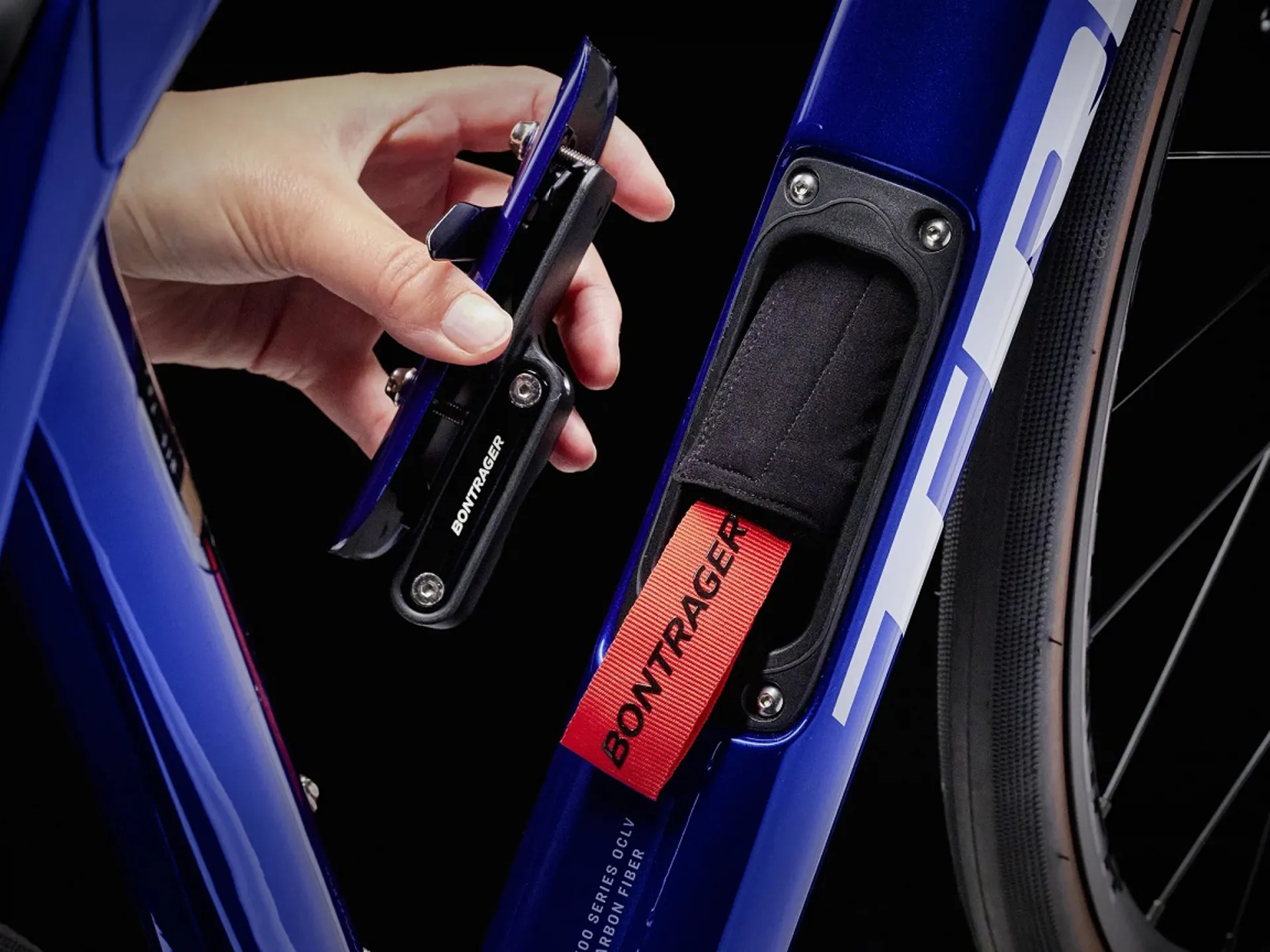

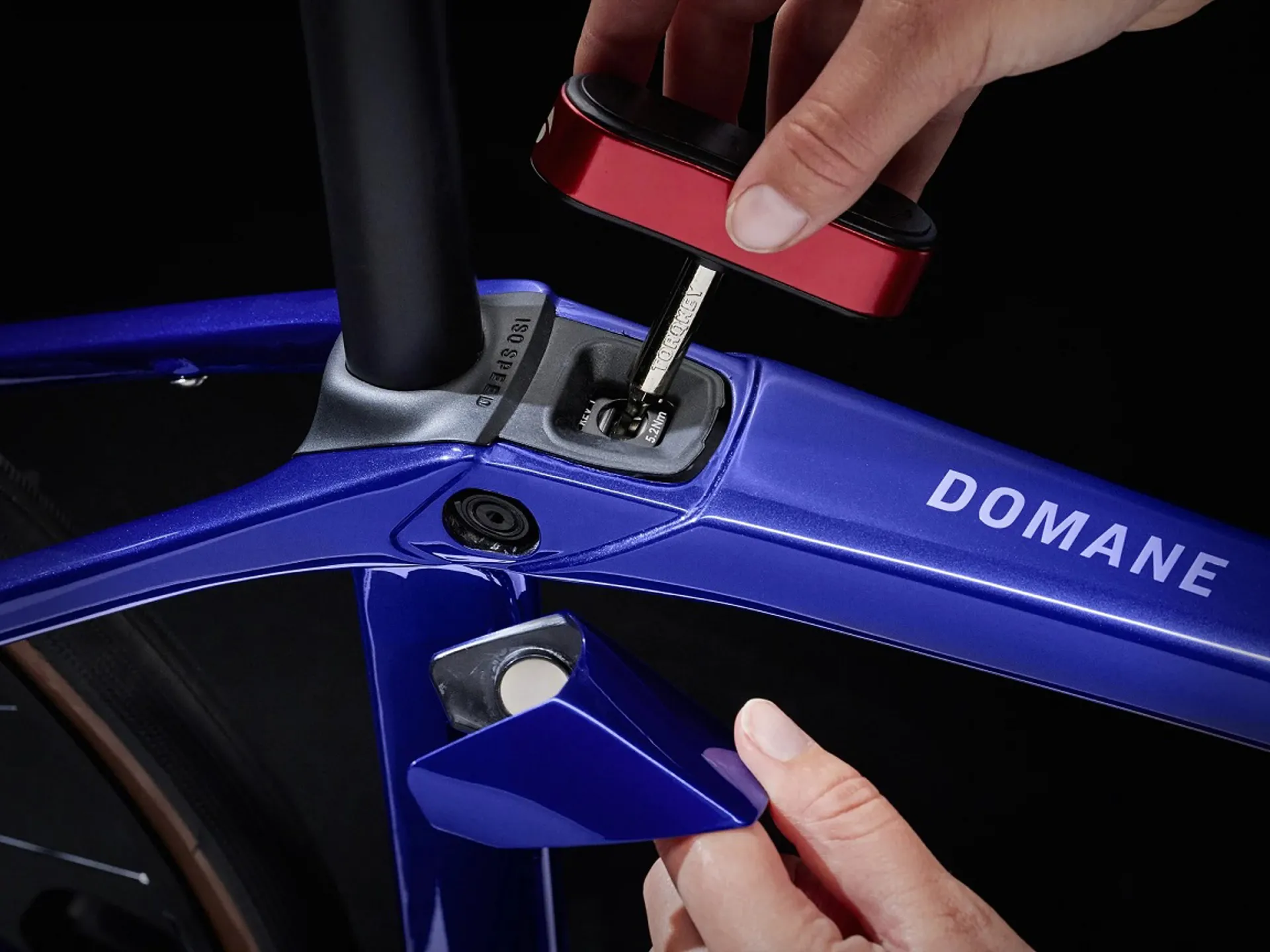

- Bag:
Bontrager BITS Internal Frame Storage Bag
- Weight:
56 - 8.90 kg / 19.63 lbs
- Weight limit:
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
